Micro LED Low Profile Beacon

Micro LED Low Profile Beacon

$181.50 - $214.50
$214.50
$181.50 - $214.50
$214.50
SKU BWL-93DIN

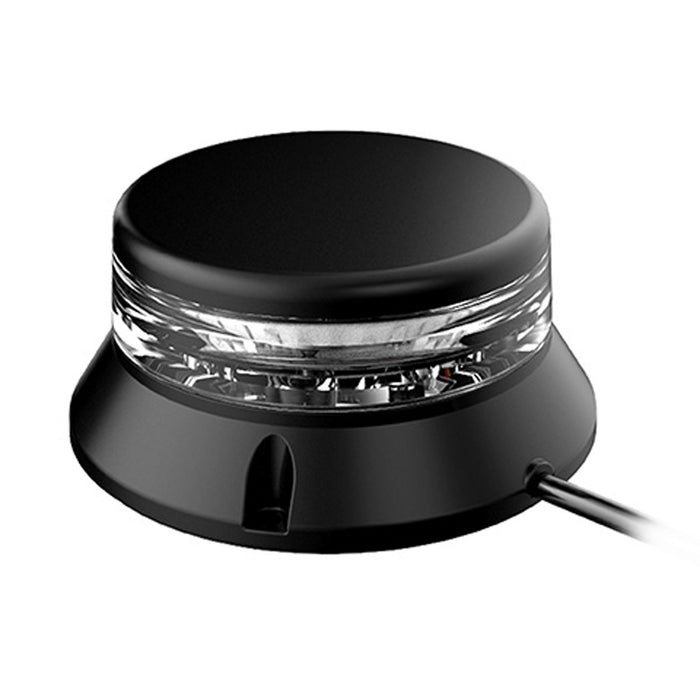

The Micro LED beacon (51mm height) is designed to get attention, with colors, intensity, and flashing rate that strongly deliver a sense of emergency. It can provide an excellent 360-degree warning illumination for police, fire, and rescue vehicles, as well as for tow trucks, snowplows, school buses, and warehouse forklift trucks. Since it is as thin as 51mm, it can be mounted onto those vehicles surface with limited space.

FEATURES

  • ECE R10, SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation
  • Fully encapsulated for moisture, vibration and corrosion resistance
  • High-intensity LED modules to provide consistent warning performance
  • Extreme low profile with only 51mm height

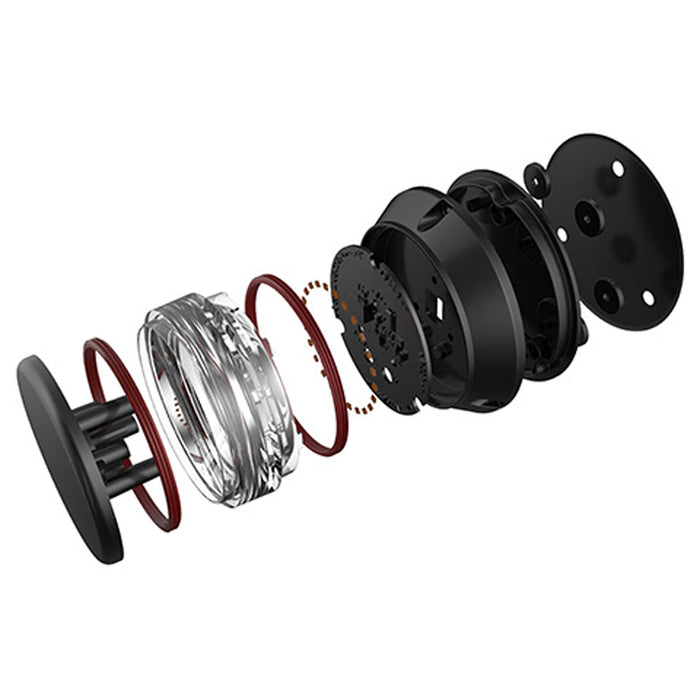

  • Both base and cover are aluminum die casting ensure stability during extended dwell time and long life dependability

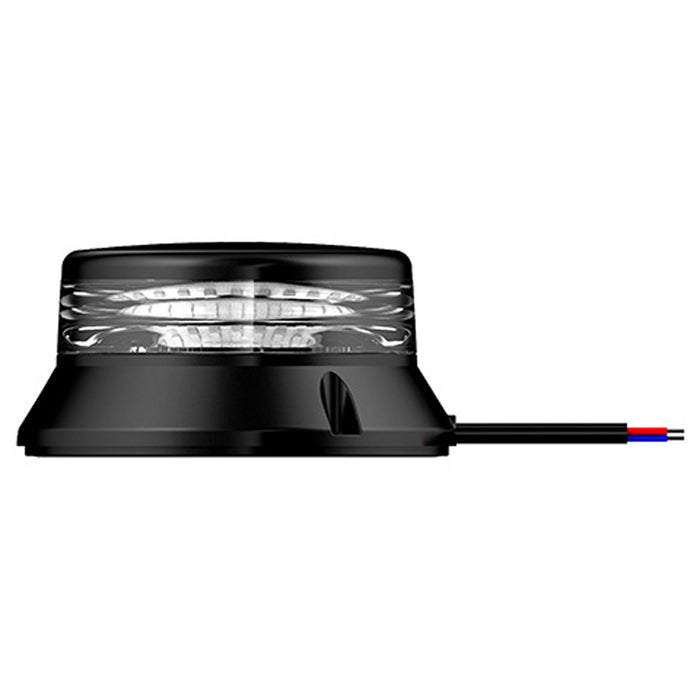

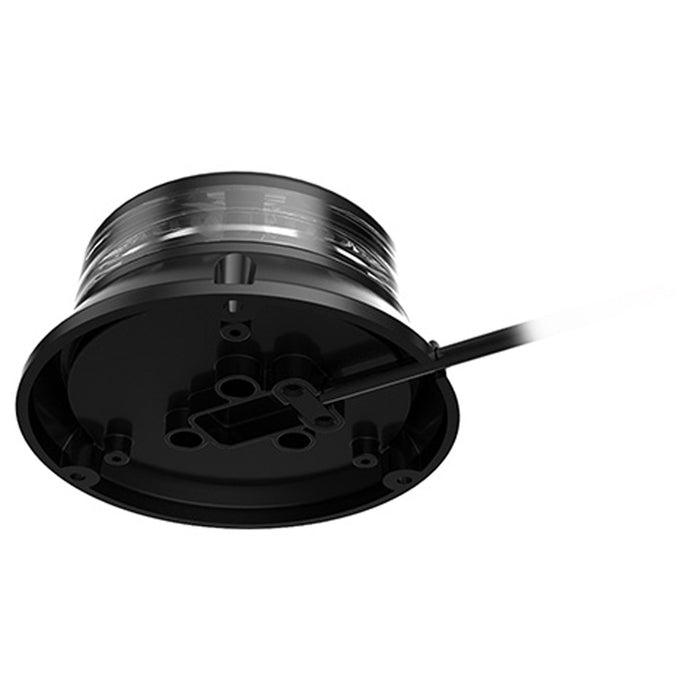

  • Screw mounting include 500mm cable
  • 11 optional flash patterns and can be customized

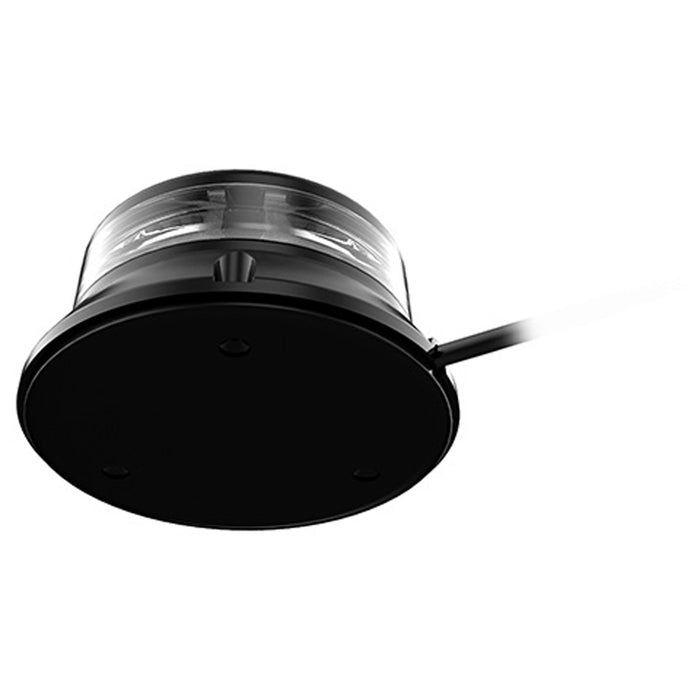

  • Magnet mounting model meets ISO-4148 standard
  • 3 mounting models available (screw, magnet, din)

SPECIFICATIONS

Approvals: ECE R10/ CISPR 25 Class3, ECE R65 Class 1/ SAE J845 Class 1

LEDs: 92 PCS*0.5W

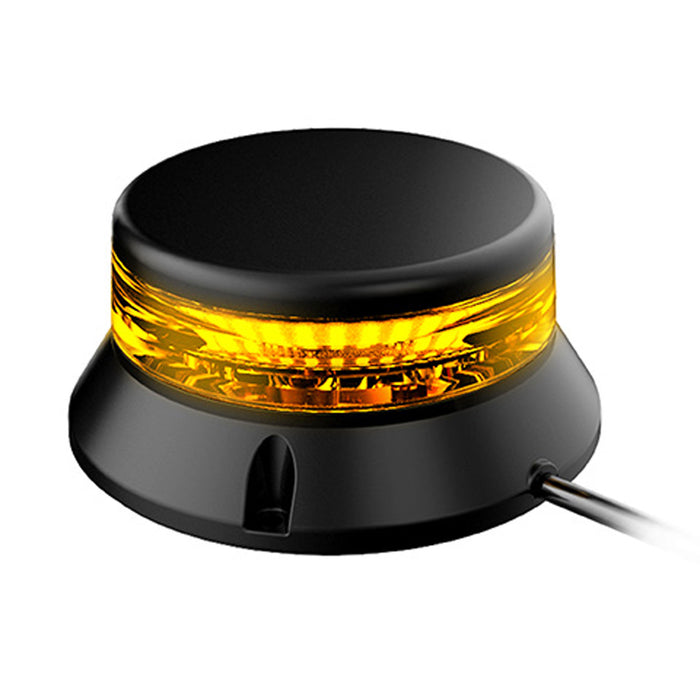

Colours: Amber/ Red/ Blue/ Red+ Blue

Operating voltage: 12/24V

Operating temperature: -30℃~ +65℃

Wires: Red: Positive(+)Black: Negative(-)Yellow: Pattern Switch

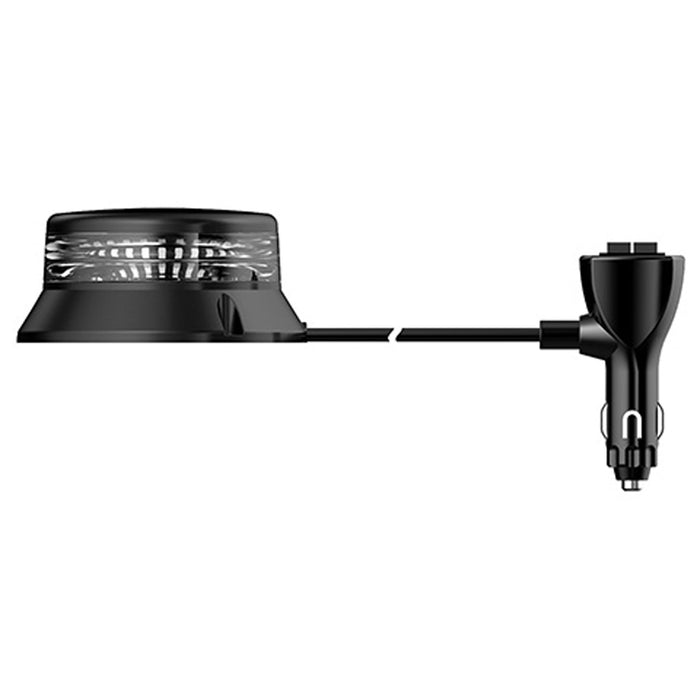

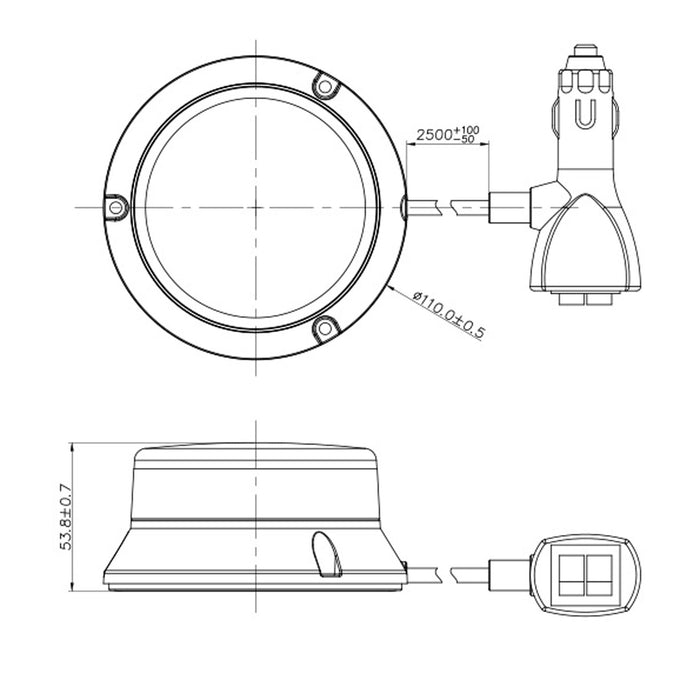

Cable length: 500mm cable/2500mm cable+ plug for magnet mounting

Housing: PC

Cover: PC

Lens: PC

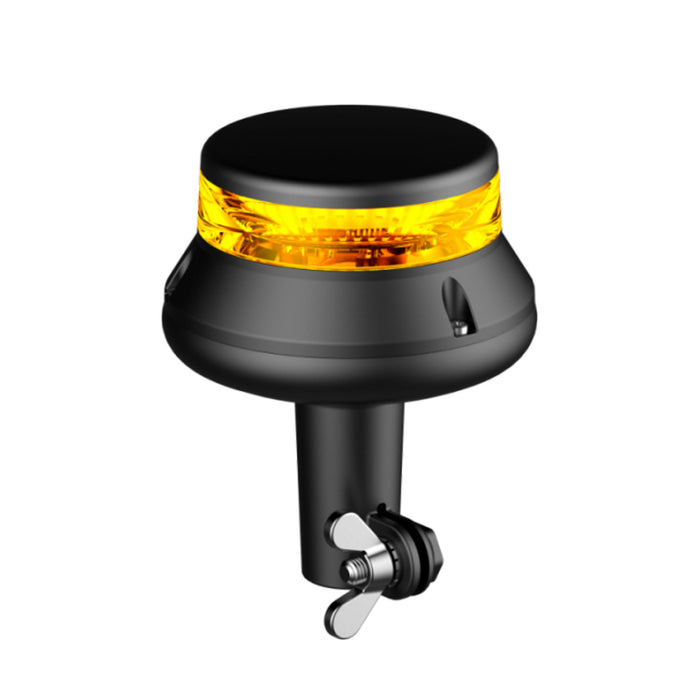

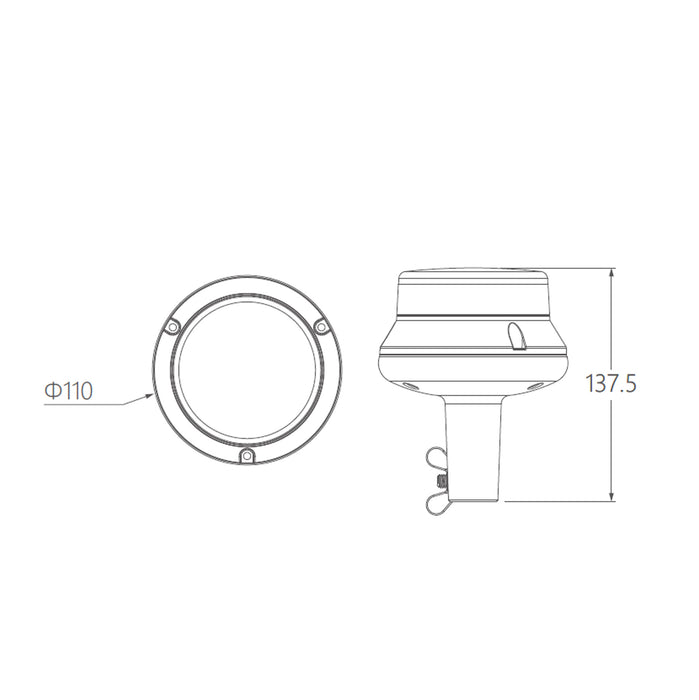

Mounting: Screw/ Magnet/ DIN pole

Waterproof: IP67

Net weight: By bolt 1300g/ PC; By bracket 1730g/ PC; By magnet 1840g/PC
