Trailer Interface Module

Trailer Interface Module

$159.50 - $159.50
$159.50
$159.50 - $159.50
$159.50
SKU TIM3-MV

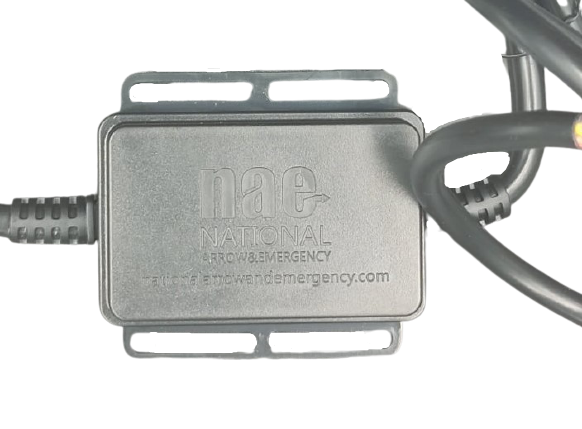

This trailer Interface Module is a dedicated solid-state module designed for modern vehicles equipped with Canbus lighting systems, connecting directly to the trailer plug. It receives signal inputs and draws power straight from the battery, effectively resolving typical trailer lighting problems while safeguarding the vehicle's electronics. This module includes internally fused 3A circuits and comes in a waterproof housing suitable for both internal and external chassis installation. With a fused main power lead, it manages up to 3 amps per circuit and supports both LED and incandescent lighting types.

FEATURES

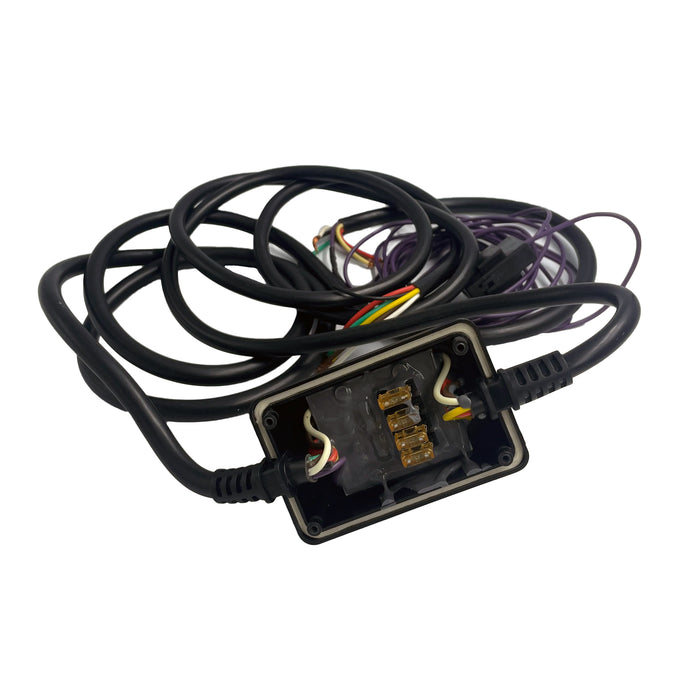

  • Independent Fused 3A circuits internally
  • Waterproof Housing for internal or external chassis mount
  • Fused main power lead
  • Controls 3 AMPS per circuit
  • Protects vehicle circuits
  • can be used on LED and incandescent lighting
  • 10-32VDC Compatible

SPECIFICATIONS

Circuits: Stop, Tail, Indicator left and right - independent fused 3A

Dimensions: 85 x 75 x 30mm

Operating Voltage: 10-32VDC

Enclosure: ABS Plastic IP67

Cable Length: 1500mm + 5m power supply fused 15A
