Automatic Solar Fan

Automatic Solar Fan

$77.00 - $77.00
$77.00
$77.00 - $77.00
$77.00
SKU TF-40

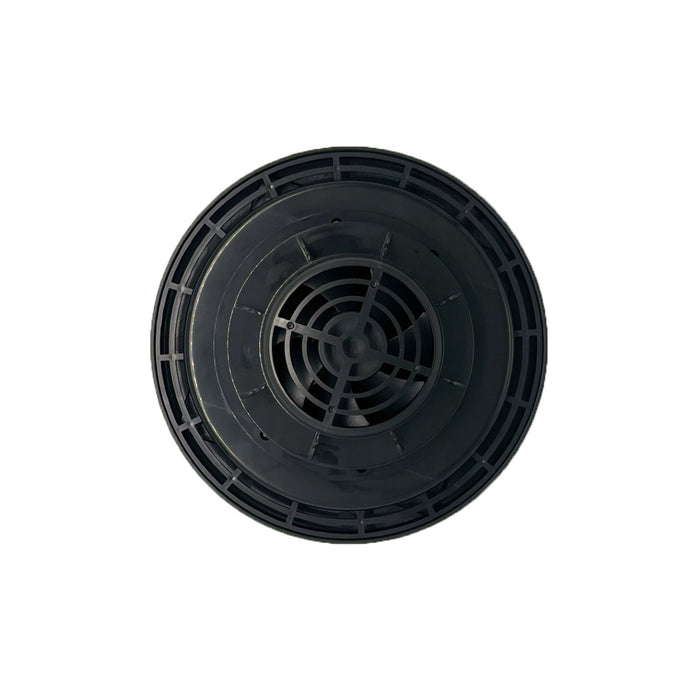

This DC fan features a built-in solar panel designed for use in portable restrooms or toilets. It improves air quality by removing unpleasant odors. Operating at 5V, the fan runs continuously when exposed to sunlight levels of up to 40,000 lux.



FEATURES

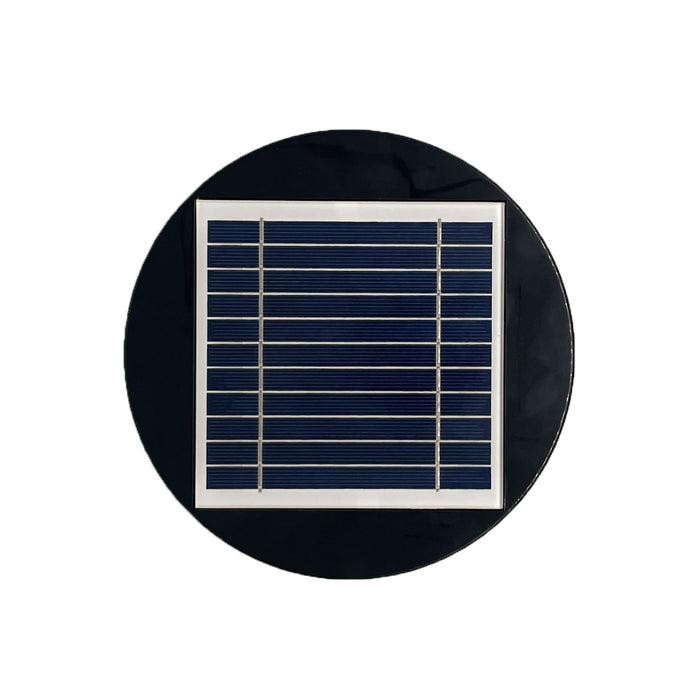

Solar Panel: Polycrystalline 5.5V, 2.5W

Fan Power: DC 5V 300mA

Fan Speed: 2500 RPM

Max air flow of the fan: 33CF/M

Bearing System: Ball

Noise Static Pressure: 27DH

Operation Mode: Sunlight 40,000 Lux - fan works continuously. Sunlight 8,000 lux - fan works intermittently.

SPECIFICATIONS

The solar panel transfers the sunlight to produce electric power which automatically drives the DC fan to work and exhaust the bad smelling, hot air from the inside to the outside.

The fan is easy to install. Simply cut a hole of 82mm diameter in the roofing and insert the tube through, screwing the holding plate on in one piece. The fan will work automatically under the sunlight.

In order to avoid rain leaking in through the installation hole, it is suggested to add a round soft rubber material between the fan and the holding plate or use glass cement to glue all around the fan.
