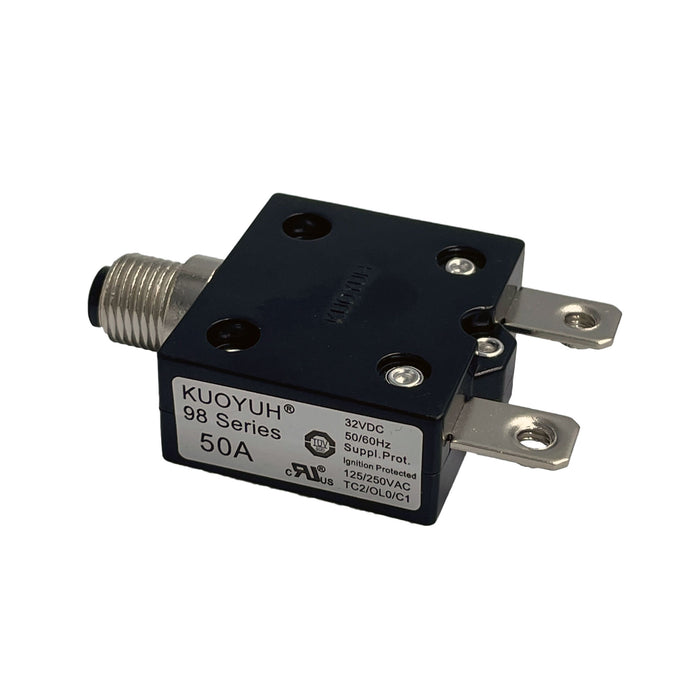

98 Series Thermal Circuit Breaker

98 Series Thermal Circuit Breaker

$31.90 - $31.90
$31.90
$31.90 - $31.90
$31.90
SKU CB-F98-50A

Panel Mount Type III Circuit Breaker Single Pole Push to Reset

FEATURES
SPECIFICATIONS

Rating Range: 5-30A

Input voltage rating: 125/250VAC; 32/50VDC

Interrupting Capacity: 125/250VAC x 1,000A(UL 1077)

Typical life 1,000 operations at 200% overload

Insulation co-ordination: Rated impulse withstand voltage 2.5kV

Dielectric Strength: > 1,500VAC/min.

Insulation Resistance: >100MOHM (DC 500V)

Degree of protection: Terminal area IP00, operating area IP40

Operating Ambient Temperature: -10℃ to +60℃

Termination: 250’’(6.35mm）quick connects or solder terminals

Mounting: Various options

The product accords with the requirement of ROHS( 2011/65/EU) Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)

Compliance with REACH, PAHS, PH1, PH2, PH3

Ignition Proof Yes, UL PEQZ2.E155159
